Picket Spacing, Scrollwork and the Details That Define Wrought Iron Gates
Most conversations about ornamental ironwork start with a picture and end with a price, and the whole middle section gets skipped. That middle section is where the decisions live. Picket spacing, top treatment, scroll placement and infill are not styling choices layered onto a finished product. They change the weight, the wind behaviour, the cost and, in one case, whether the installation is legal.
What follows is the design vocabulary, what each element does beyond looking a particular way, and where the practical constraints sit. It is worth knowing before you look at a gallery, because it lets you describe what you want in terms a fabricator can quote from.
Picket spacing, and the one rule that is not negotiable
Pickets are the vertical bars, and the gap between them is the first thing to settle.
If there is a swimming pool anywhere behind the fence line, the spacing is decided for you. Residential pool barrier requirements limit openings to four inches, on the basis that a four inch sphere approximates the head of a small child. That number governs vertical gaps, the gap under the bottom rail, and the gap between a gate leaf and its post. It is checked, and a barrier that fails on any one of those three points fails as a whole.
Away from a pool, four inch spacing is still the most common choice because it looks conventional and it keeps most dogs in. Wider spacing, five or six inches, uses less material, reads as lighter and more open, and lets small animals through. Narrower spacing, three inches or less, reads as substantial and starts to approach a screen.
There is a visual effect worth knowing about. Spacing that is close to the picket width produces a stripe pattern where the eye stops resolving the individual bars, which looks busy. Spacing noticeably wider than the picket reads as a rhythm and is calmer. Most designers keep the gap at roughly two to three times the picket dimension for that reason.
Picket section, and why square bar and round bar look so different
A half inch square bar and a half inch round bar contain almost the same steel and produce very different results. Square bar has flat faces that catch light as distinct highlights, which reads as crisp and modern. Round bar has a continuous gradient across its face and reads as softer and more traditional.
Twisted square bar, where a section of the picket has been heated and given a quarter or half turn, is the traditional decorative treatment and it does something useful as well as looking a particular way. It breaks up the vertical repetition without adding any width, which keeps the fence line from reading as a barcode.
Section size drives weight quickly. Going from half inch to five eighths increases the cross sectional area by more than half, and on a gate with twenty pickets that is real mass hanging on the hinges. On a swing gate this is the point where a design decision quietly becomes a hardware decision, since a heavier leaf wants a bigger hinge, a stronger post and a larger operator.
Top treatments, and what each one commits you to
The top of the pickets is the most visible decision in the whole design.
Flat top means the pickets stop at the top rail. It is clean, contemporary, cheapest, and the safest around children.
Spear top or finial means the pickets pass through the top rail and terminate in a point or a cast ornament. This is the classic look and it is genuinely more secure, because it makes the top of the fence unpleasant to grip and climb. It also means twenty or more separate ornaments to fit, so it costs more, and there is a real safety consideration around a gate that small children use daily.
Pressed spear, cast finial and forged point are three different products at three different prices. A pressed spear is a flattened and shaped picket end. A cast finial is a separate piece slipped over and fixed. A forged point is worked by hand. They look progressively better and cost progressively more, and on a long run the difference adds up fast.
Rings and collars, meaning the small bands that gather pickets or wrap a scroll, are the detail that most distinguishes hand work from production work. On traditional ironwork a collar is a wrapped and hammered band. On production work it is usually a welded ring, which is perfectly serviceable and does not have quite the same texture.

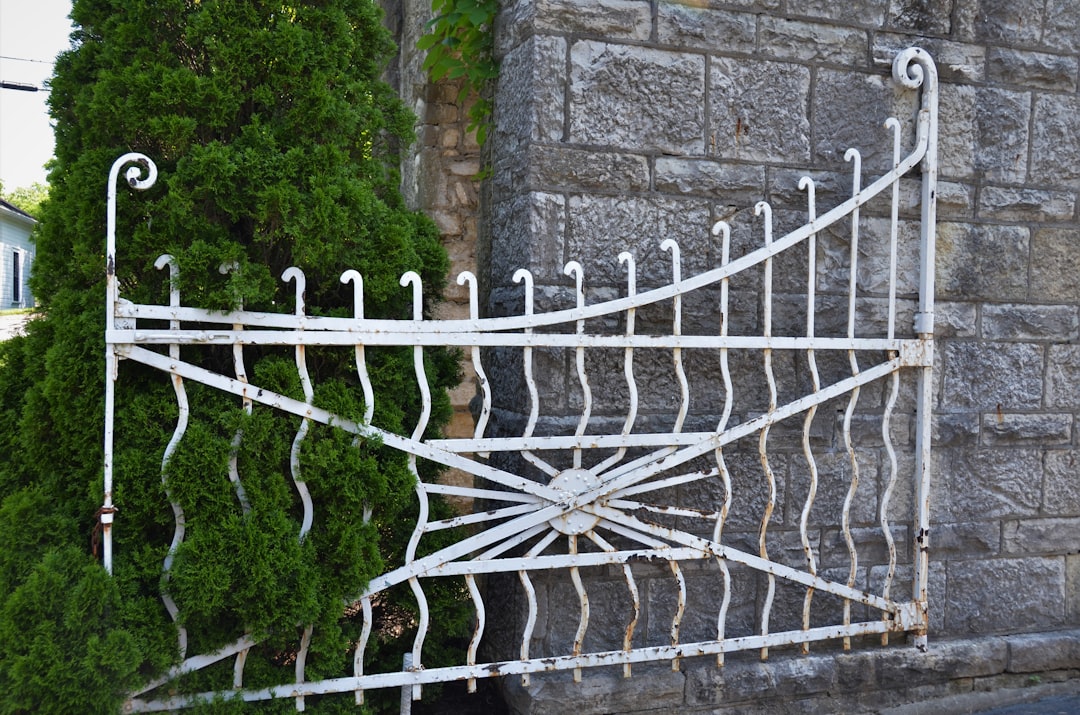

Arched, cambered or flat across the top
The profile of the top rail across the width sets the character of the whole thing.
A flat top rail is the default. It is easiest to build square, easiest to fit hardware to, and it suits contemporary designs.
A camber, meaning a gentle rise toward the centre, softens the line and is the most common choice on a double driveway gate. It also has a practical benefit, since a gate that rises slightly toward the centre has more ground clearance where the drive usually crowns.
A full arch is a stronger statement and costs more, because every picket in the arched section is a different length and the top rail has to be rolled rather than cut. An inverted arch, dipping toward the centre, is dramatic and is a poor choice on a swing gate over a crowned driveway, for the obvious reason.

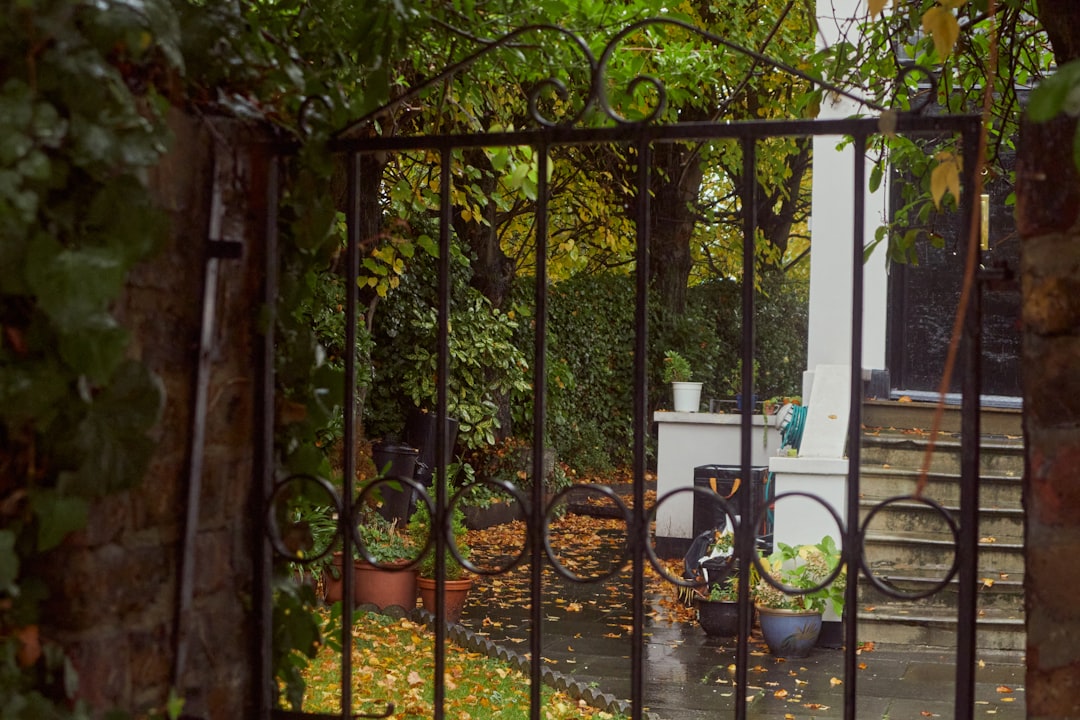

Scrollwork, and where to put it so it survives
Scrolls are the curled decorative elements, and their placement is a structural decision as much as a visual one.
The two conventional positions are a band across the upper third of the gate, and a cluster in the centre where the two leaves meet. Both work because they sit inside the frame, supported at multiple points, and they do not project.
Where scrolls cause trouble is at the bottom of the gate, where they collect leaf litter and hold moisture against the finish, and at the leading edge, where they get caught by vehicles and pedestrians. A scroll that projects beyond the frame line is going to be bent eventually.
The other consideration is quantity. Scrollwork is labour, and labour is most of the cost of ornamental ironwork. A design with a modest amount of scroll in the right places usually reads as more considered than one that fills every panel, and it costs substantially less.
Solid infill and privacy backing
Some designs add sheet metal panels behind or between the pickets, either for privacy or as a design element. This is worth thinking about carefully on a swing gate.
Open pickets let wind through. A solid panel does not, and a driveway gate is a large surface area. Adding a full height privacy backing to a twelve foot leaf turns a structure that wind passes through into one that wind pushes against, and everything downstream of that changes. Post size, footing depth, hinge specification and operator force all have to be reconsidered.
The common compromise is a partial panel, typically the lower third or half, which gives screening where people actually look through and leaves the upper section open. It is also the section least exposed to the strongest wind.
If a full panel is wanted, it should be part of the specification from the beginning rather than added later, because retrofitting one onto a gate designed for an open infill is how posts start to lean.
How this all lands on a swing gate
Every choice above adds or removes weight, and on a swing gate weight is the constraint that ties everything together. The leaf hangs off two hinges on one post, and the further out the mass sits, the more it loads them.
That means the same design in the same steel behaves differently at ten feet and at fourteen. Heavier ornament near the leading edge is worse than the same ornament near the hinge. A design that works comfortably as a pedestrian gate can be marginal as a driveway leaf, and the honest answer from a fabricator is sometimes to split a wide opening into two smaller leaves rather than build one long one.
None of this argues against ornament. It argues for deciding the ornament and the engineering together, which is what a shop that builds its own gates is able to do and a shop that orders them in is not.
What to hand a fabricator
A useful brief is short. Picket section and spacing, and whether there is a pool. Top treatment, naming which of the three spear types. Top rail profile, flat, cambered or arched. Where the scrollwork goes and roughly how much. Whether any panel infill is wanted, and how tall.
Six lines, and it is enough for two shops to quote the same thing, which is the only way a price comparison means anything.
